Pneumatic Conveying

Pneumatic Conveying

Powder Process-Solutions supplies powder handling systems of all types to store, convey, blend, screen, weigh, mill, transport, discharge and pack dry bulk and semi-solid powders and granules.

System design may incorporate either dilute or dense phase pneumatic conveying principles, and selection is dependent on the product and its applications. Based on an intimate knowledge of a wide variety of products, Powder Process-Solutions will design, manufacture, supply, install, commission, and guarantee systems which combine purpose-built components to suit each application.

Pneumatic Conveying header
Pressure Dilute Phase Systems
  • Most common and versatile system for most applications
  • Blower driven
  • Simple rotary valve/airlock feeding device
  • Low pressure convey line with simplified fittings and couplings
  • Continuous operation
  • Convey rate adjustable via variable speed drive for dosing
  • Suitable for single or multiple source-multiple destination systems
  • Ideal for multiple hopper weigh batching systems

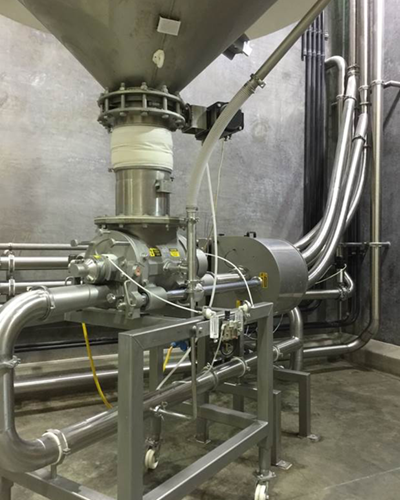

Pneumatic Conveying Dilute Phase Conveying
Pressure Dense Phase Systems
  • Conveys high capacities over longer distances
  • Smaller convey line diameters
  • Reduced average convey velocity
  • Reduced abrasion and particle degradation
  • Compressed air driven
  • Suitable for single source multiple destination systems
  • Mobile sender units and pre-weighing options
  • Continuous conveying option with two units

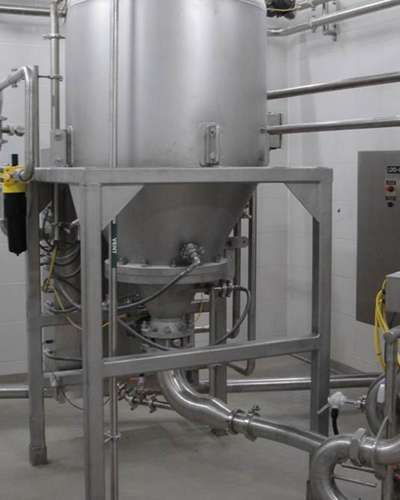

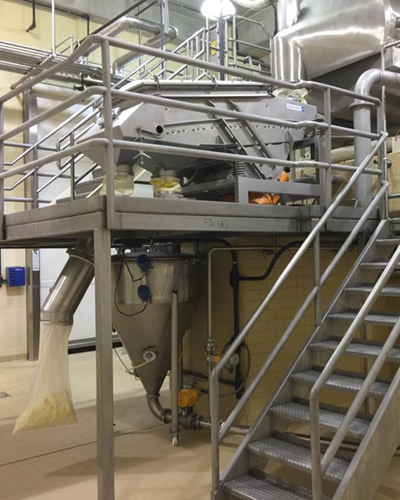

Pneumatic Conveying Dense Phase Conveying
Vacuum Dilute Phase Systems
  • Reduced dust hazards
  • Exhauster driven
  • Rotary valve/airlock feeding device frequently eliminated
  • Low pressure convey line with simplified fittings and couplings
  • Continuous or batch operation
  • Discharge rate adjustable via variable speed drive for dosing
  • Suitable for multiple source-single destination systems
  • Ideal for unloading from bins, barrels, stockpiles, trucks, and for vacuum cleaning systems

Pneumatic Conveying Dilute Phase Conveying
Vacuum Dense Phase Systems
  • Can convey high capacities over medium distances
  • Smaller pipe diameters
  • Minimum convey velocity
  • Minimum abrasion and particle degradation
  • High capacity vacuum pump-driven
  • Suitable for multiple source/multiple destination systems
  • Weigh batching and continuous conveying options
Pneumatic Conveying Dense Phase Conveying

Powder Process-Solutions’ test facility is available to fully evaluate product characteristics and system design prior to manufacture.
