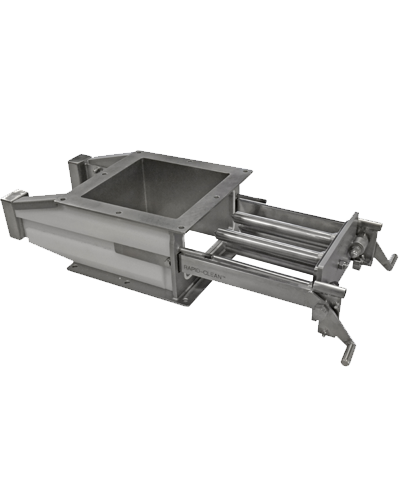

RAPIDCLEAN™ Grate Magnets

The RAPIDCLEAN™ grate magnet serves as a quick-clean grate magnet, featuring a dust-tight housing that can be easily cleaned outside the product stream. The RAPIDCLEAN™ grate magnets can be installed at the inlet or outlet of rotary valves, at the discharge of screw conveyors , elevators, flowveyor and blenders, or upstream of all packing operations and bulk filling.

The swing-up design of the grate magnet allows for easy and quick cleaning, which also allows maintenance to safely clean in the process area, compared to other magnetic separator designs that require transporting the magnet grate for cleaning, which can leave maintenance open for injury and the magnets exposed to damage.

Housing Features
  • Stainless steel construction
  • Ledge free housing interior
  • Swing-up magnet feature is robust, compact, safe, and self-supporting
  • USDA Dairy accepted models, suitable for hygienic sensitive applications such as dairy and baby food powders
  • Variable bar centers to suit product flow
  • Engineered spanner free, quick release magnetic door closure — provides even door seal pressure — seal presses into groove
RAPIDCLEAN equipment
Magnetic Details
  • RE80™ or RE80™ HT ultra high energy magnet element options, greater than 10,000 gauss
  • Seal welded and vacuum encapsulated for extended magnet strength life
  • Withstands cleaning temperatures to 302°F — safe to hot water blast (HT models)
  • Non-magnetic ends protected from product flow
Safety Features
  • Product security
  • External drawer support slides
  • Eliminate risk of metal fragment issues caused by magnets not being cleaned (no operator error)
RAPIDCLEAN equipment with Swing Away design
